VLF Meter device M-VLF34 | cable test

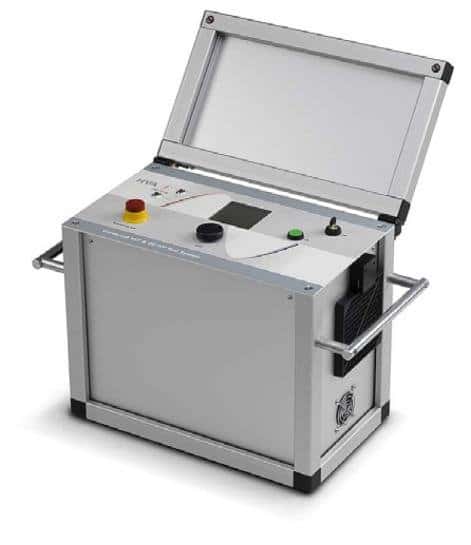

VLF Meter M-VLF34 | Cable Testing – The field of work of the M-VLF34 is cable testing and cable diagnosis. The high voltage generator is a very compact and very light VLF test instrument. With the variable VLF system, it is possible to select the two polarities accordingly the mode DC testing and the AC output frequency. Cable sheath testing or sheath fault location are part of the selection range. M-VLF34 is a portable generator that generates high voltage to eliminate cable faults.

For the 0.1Hz VLF test system is suitable for medium voltage cable testing. VLF meter type M-VLF34 is a portable system for cable diagnosis and testing. A high output current up to 85mA is considered the special strength of the device. The powerful output is able to drive capacitive loads up to 15 microfarad. Weighing only 45kg, the high voltage generator is a compact VLF unit, making it perfect for mobile use. Due to its light weight, the site of operation can be easily reached.

With a maximum output voltage, it is possible to test a cable with a length of up to 8 km. M-VLF34 can also be extended to a cable diagnostic system due to its full modularity. Also, the system offers different operating modes. A built-in discharging device is available for discharging the DUTs. The M-VLF34 has a manual and automatic test diagnostic sequence. No external PC is required on site. Due to the fact that the VLF measuring device is not thermally limited, it can be operated continuously over the entire operating time.

We offer you advice on the following topics: VLF measuring devices | cable diagnostics | VLF diagnostics.
